Titan - Ford Gallon Mid-Ship Replacement Fuel Tank - 7020299

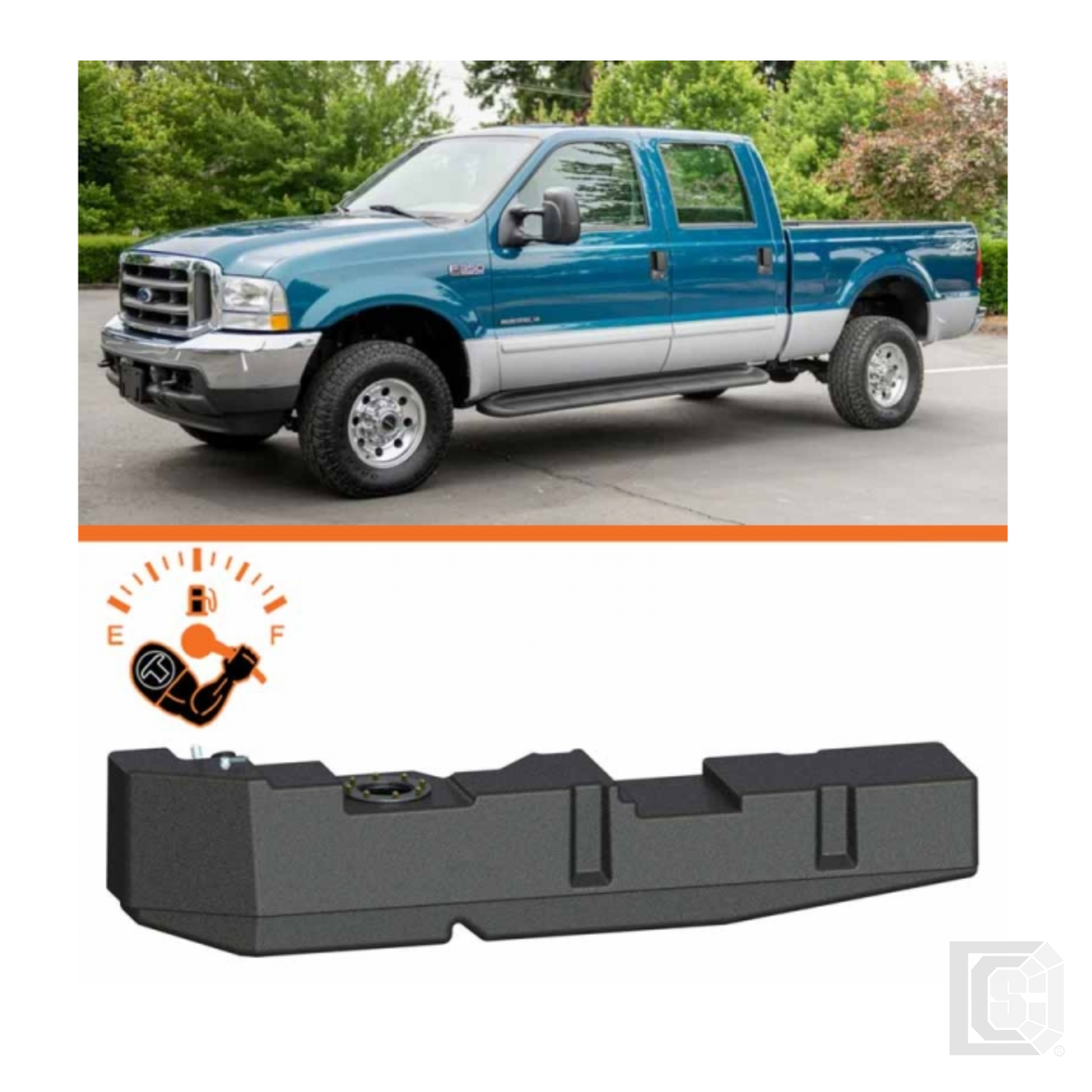

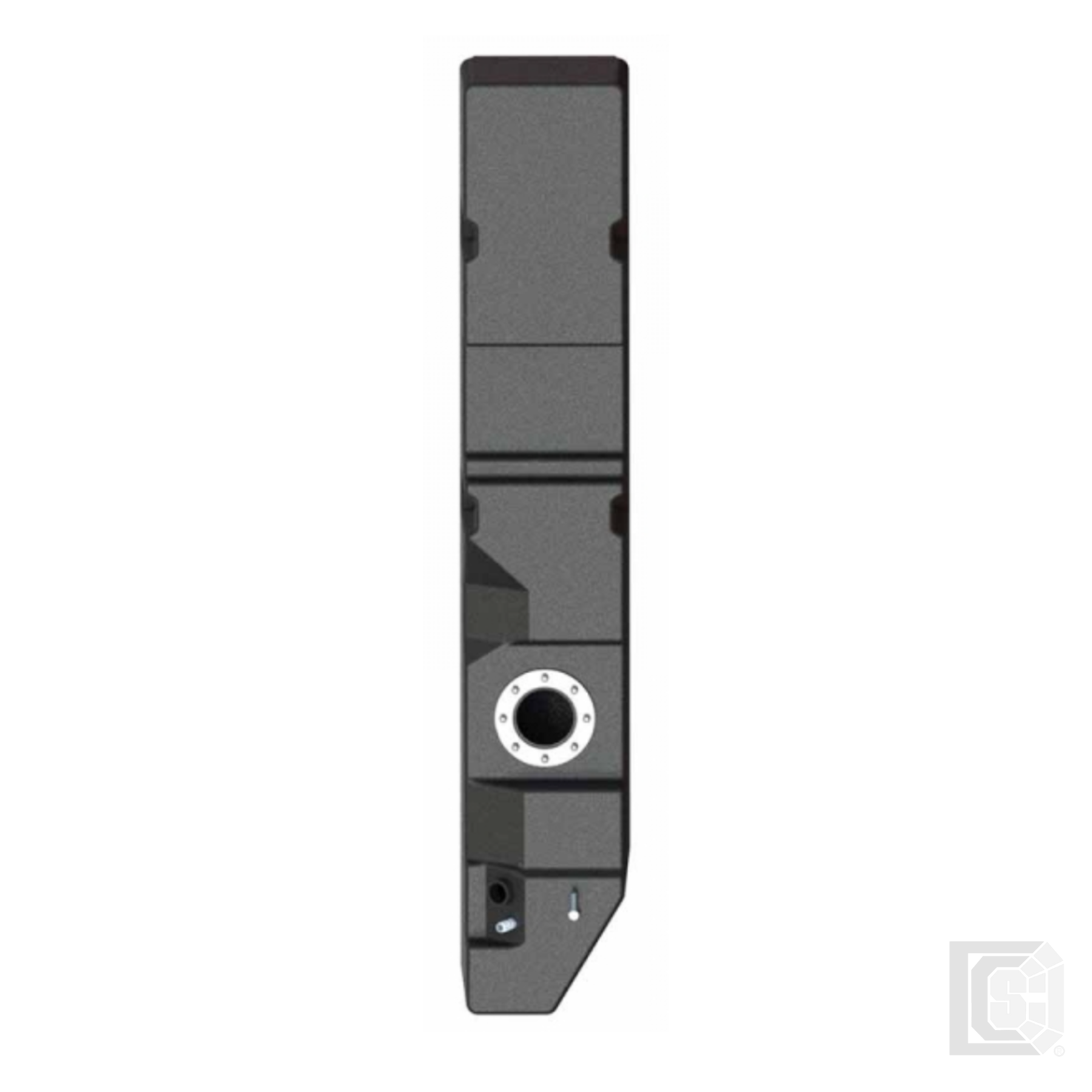

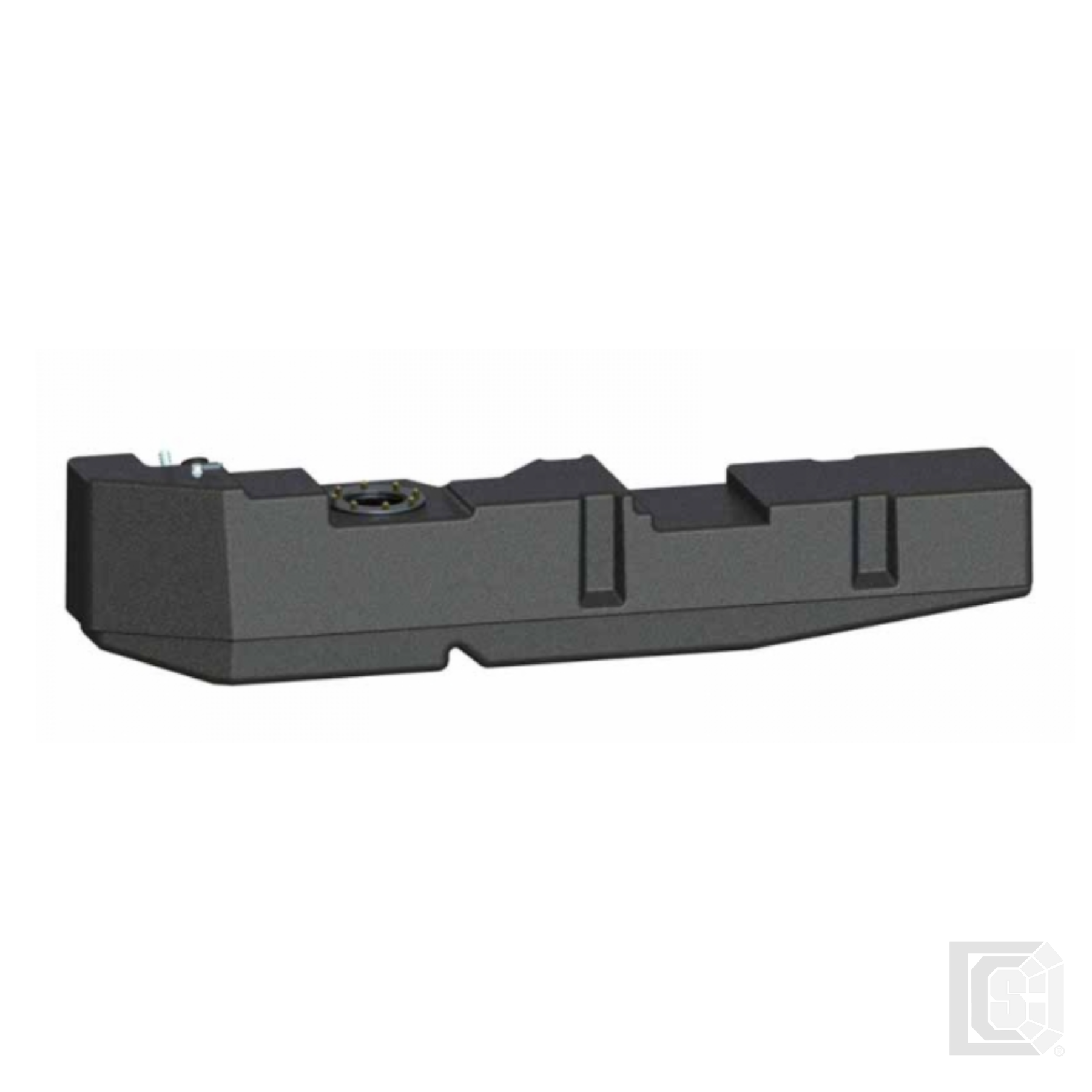

Titan Ford Mid-Ship Replacement Fuel Tank (7020299) — 51-gallon extra-capacity, direct-replacement tank for Ford Super Duty crew-cab short-bed trucks. Built from heavy-duty cross-linked polyethylene, it installs in the factory mid-ship location, uses the OE sending unit, and works with the stock fuel gauge. Capacity jumps from the ~30-gallon stock tank to 51 gallons, giving you significantly more range without sacrificing ground clearance.

Key features

• 51-gallon capacity (about +21 gallons over stock)

• Mid-ship, direct-fit replacement—no bed or frame modifications

• Rugged, corrosion-proof cross-linked polyethylene construction; reduces condensation and is far less heat-conductive than metal tanks

• Compatible with most powered steps and air-bag systems; retains OEM ground clearance

• Reuses factory sending unit and works with the OE gauge cluster

• Made for heavy-duty use in towing and long-range driving

Fitment

• Ford F-250 & F-350 Super Duty, 1999–2007, Crew Cab, Short Bed (6.75 ft), Power Stroke diesel (7.3L 1999–2003 and 6.0L 2003–2007). Does not fit extended/regular cab or long-bed

Notes

• Stock tank is ~30 gallons; the Titan tank increases capacity to 51 gallons (+21).

• Check emissions/evap and local regulations before installation; verify cab/bed configuration by VIN.
