Mahle - Engine Piston Set - 2243902WR020

Mahle - Engine Piston Set - 2243902WR020

Regular price $61.74 USD
Regular price Sale price $61.74 USD
Sale Sold out
Shipping calculated at checkout.

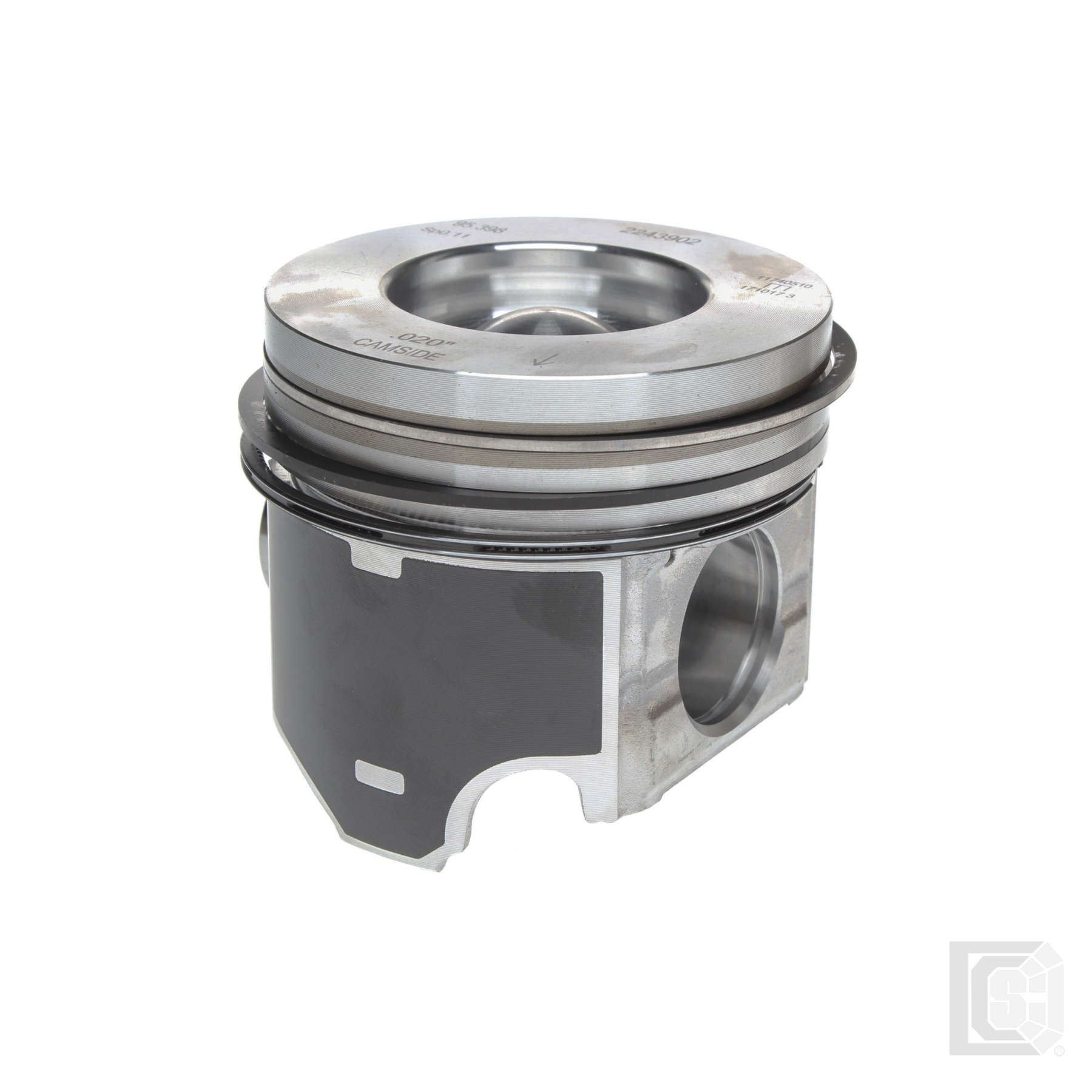

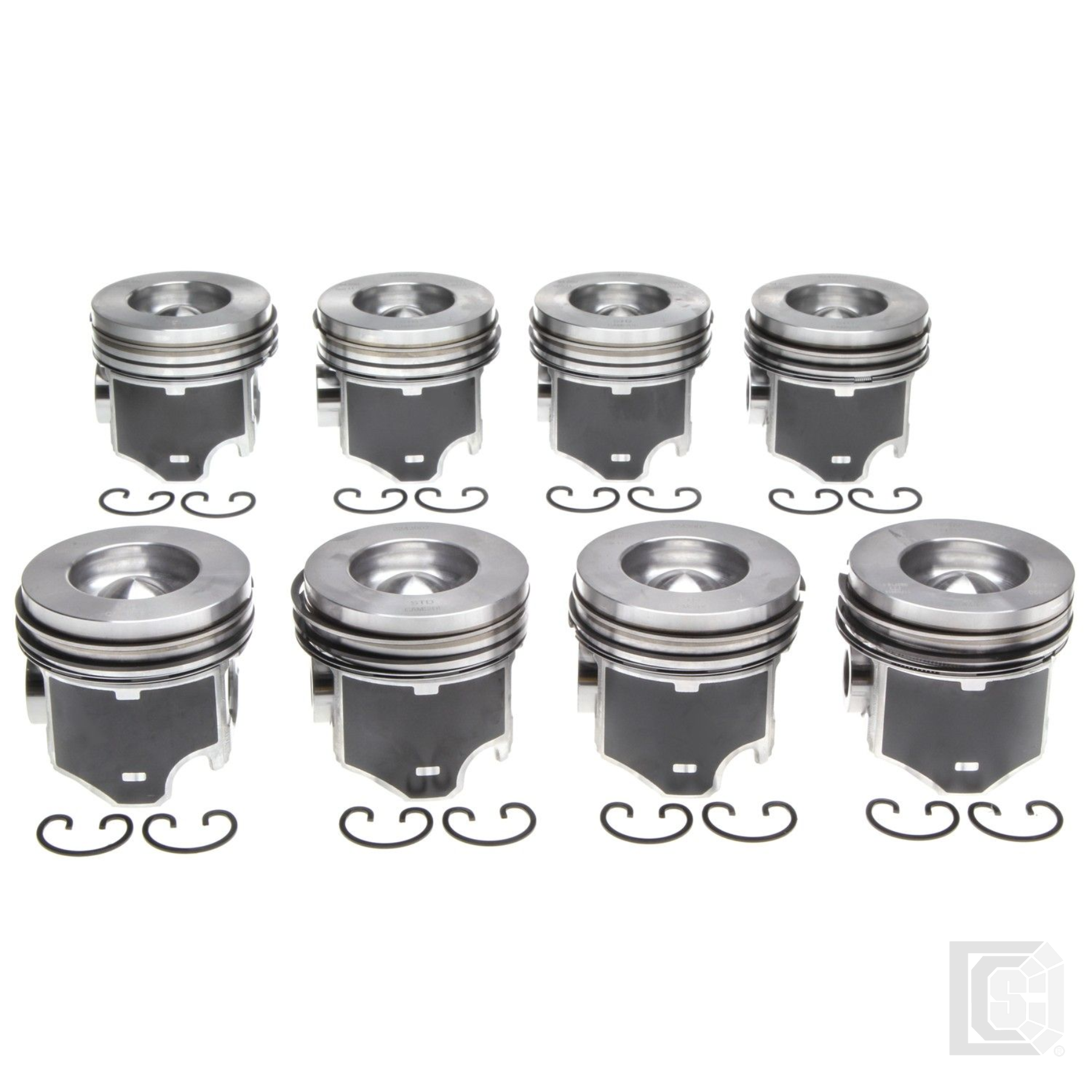

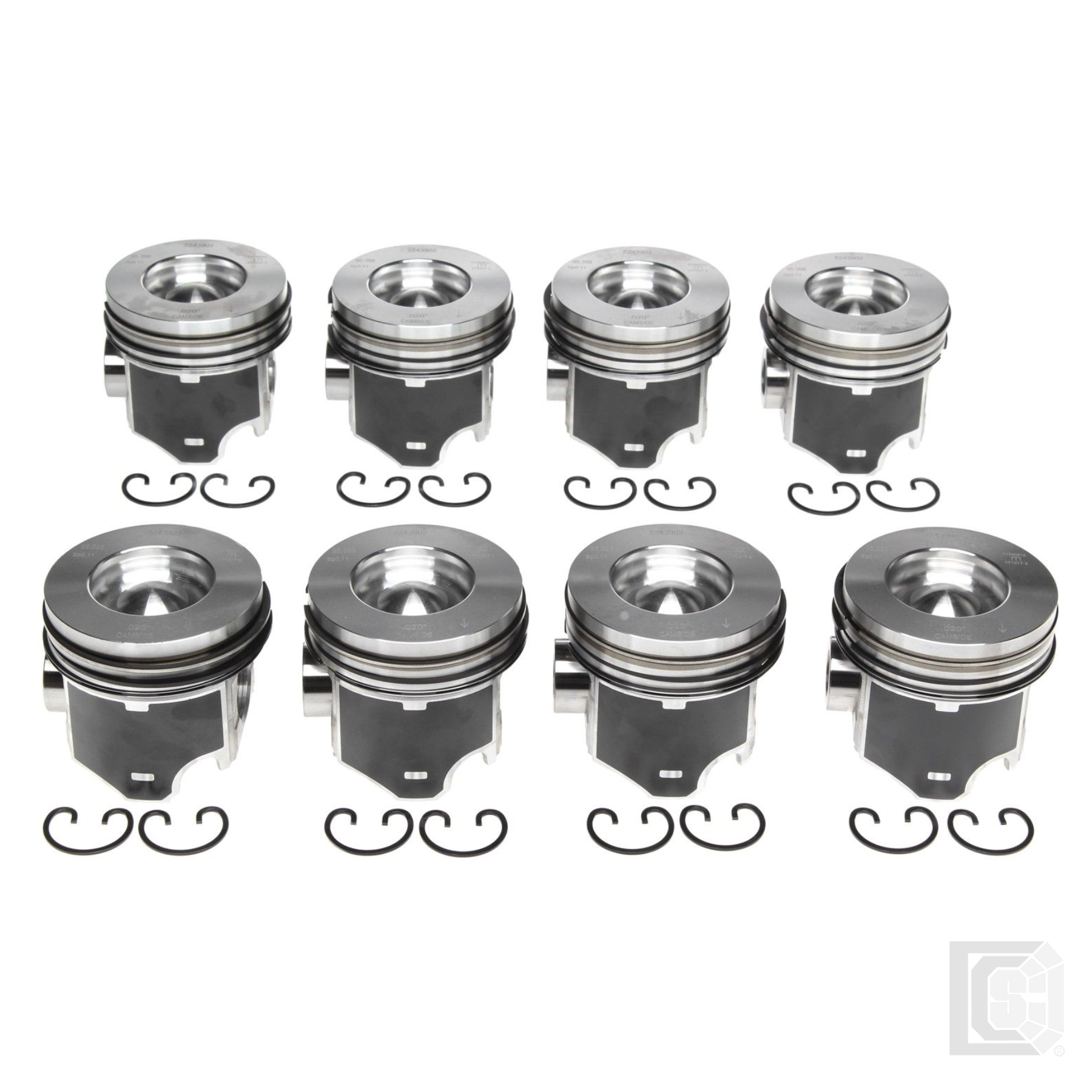

Mahle Engine Piston Set – 2243902WR020 (0.020" Oversize)

The Mahle 2243902WR020 piston set is a 0.020-inch oversized solution for rebuilding 6.0L Power Stroke diesel engines, commonly found in 2003–2010 Ford Super Duty and E-Series vehicles. Made from high-strength aluminum with a bowl-style piston head, these pistons are built to handle high combustion pressure while delivering reliable performance.

The coated skirts reduce friction and wear, while the oversized design ensures a proper fit when cylinders have been bored during an engine rebuild.


Key Specs:

  • Oversize: 0.020 inch

  • Compression Height: 52.04 mm

  • Piston Head Type: Bowl

  • Material: Aluminum

  • Skirt Coating: Yes

  • Top Ring Thickness: 2.30 mm

  • Second Ring Thickness: 2.00 mm

  • Oil Ring Thickness: 3.44 mm

  • Piston Pin Diameter: 34.01 mm

  • Includes: Pistons and pins (piston rings sold separately unless noted)


Fitment – 6.0L Power Stroke Diesel (Ford):

  • E-350 Club Wagon: 2004–2005

  • E-350 Super Duty: 2004–2010

  • E-450 Super Duty: 2004–2010

  • Excursion: 2003–2005

  • F-250 / F-350 / F-450 / F-550 Super Duty: 2004–2007


📞 Call 1-800-228-8482 or 📧 Email parts@southcentraldiesel.com to confirm fitment or bundle with matching piston rings and gasket kits.
