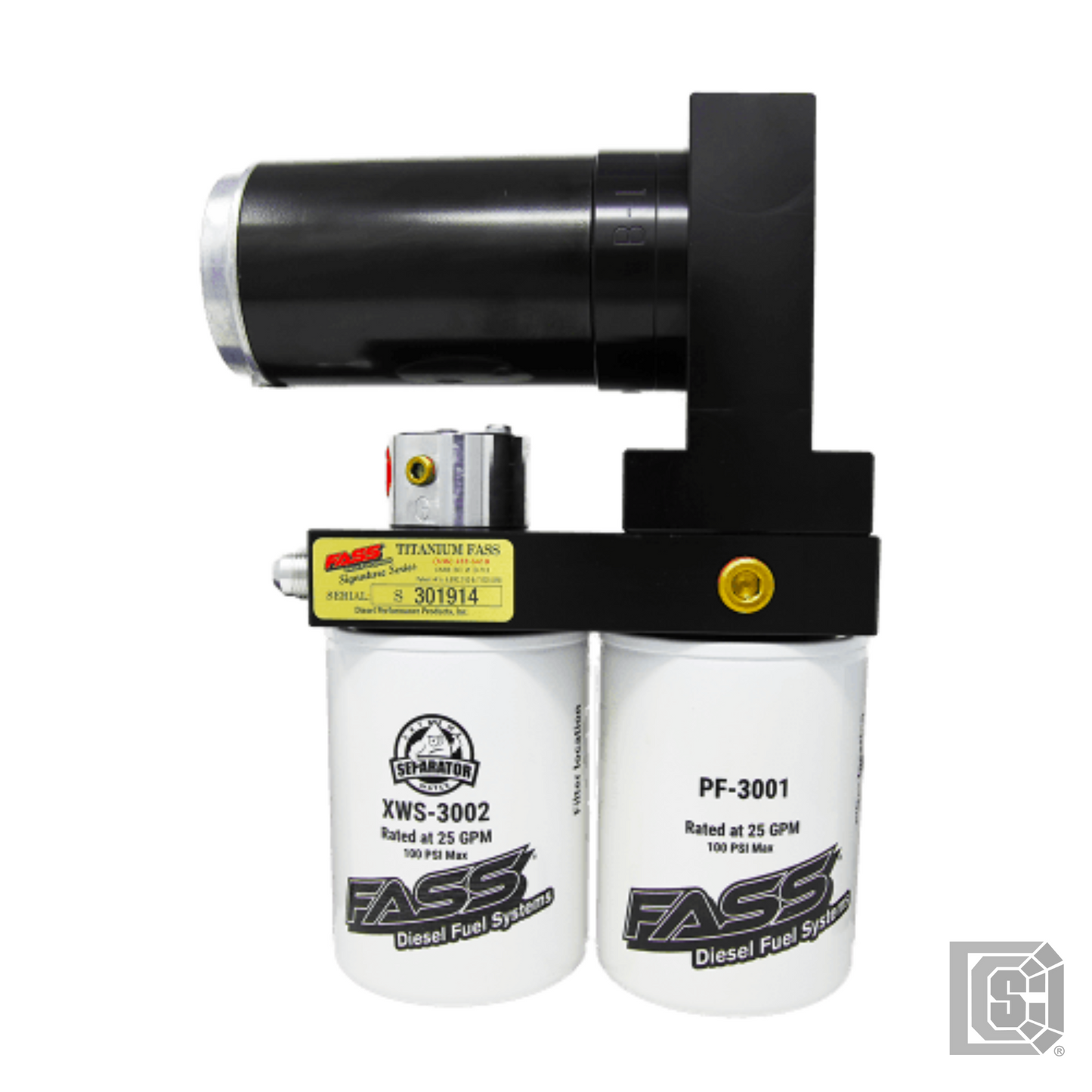

FASS - Titanium Signature Series Diesel Fuel System 250GPH, (10 PSI) 2008-2010 Ford Powerstroke 6.4L, 900-1200hp - TSF16250G

FASS - Titanium Signature Series Diesel Fuel System 250GPH, (10 PSI) 2008-2010 Ford Powerstroke 6.4L, 900-1200hp - TSF16250G

Regular price $799.00 USD
Regular price $841.05 USD Sale price $799.00 USD
Sale Sold out
Tax included. Shipping calculated at checkout.

Fitment: Ford F250/F350 Powerstroke 6.4L 2008-2010

The Titanium Signature Series diesel fuel System from FASS Diesel Fuel Systems stands out as the pinnacle of aftermarket filtration Systems in the diesel industry. With a rating of 250 gallons per hour and backed by a limited lifetime warranty, this System is engineered to provide unparalleled support for your Ford Powerstroke 6.4L diesel engine, accommodating aggressive fueling System upgrades ranging from 900 to 1200 HP. The Titanium Signature Series offers advanced filtration benefits, including an improved filtration rating of 2 Microns, a built-in water separation filter, and FASS Diesel Fuel Systems' patented air/vapor removal process, effectively safeguarding your Powerstroke’s injection Systems and extending the life of both the Injection System and Injectors.

Key Features:

  • New Whisper Technology
  • Preset 10 PSI Fuel Pressure
  • Complete Replacement System
  • 250 Gallons Per Hour Flow Rating
  • Removes Water, Air, and Debris From Diesel Fuel
  • 2 Micron Filtration Rating
  • Protects and Extends The Life Of Your Injectors
  • Improved Cold Weather Starts
  • Decreases Carbon Monoxide and Carbon Dioxide Emissions
  • ½ Inch Fuel Lines and Ports
  • Bulkhead and Suction Tube Kit
  • Fuel Mileage Improvement
  • Improved Fuel Volume Delivery
  • Smoother Engine Idle
  • Optional Electric Heater Ports
  • Optional Fuel Pressure Gauge Port
  • Limited Lifetime Warranty
  • 1,000,000 Mile Motor
  • 30,000 Mile Filter Life Expectancy
  • Quietest Motor On The Market

The kit includes a Bulkhead Fitting and Suction Tube, machined from 6061 T-6 Billet Aluminum. The Bulkhead fitting functions as both a suction tube and return and features a 5/8” Suction Tube along with a ½” Fuel Return Port. This new and improved version from the previous Suction Tube allows the user to plumb their FASS return line directly to the bulkhead fitting, eliminating the need for cutting the filler neck and significantly expediting the installation process. The pickup tube is fabricated out of PTFE Teflon, easily cut to adapt to different depths of fuel tanks. Properly installed, the System can safely operate down to about 1/8 tank of fuel.

FASS Whisper Technology (FST) is a result of over two and a half years of development and testing, meeting the demands of today’s quiet diesel engines. It drastically reduces the sound levels of the Signature Series FASS Diesel Fuel System to a “whisper” while simultaneously increasing fuel flow rates. Performance Radius Cuts (PRC) employ advanced machining techniques to improve fuel flow, preventing the reintroduction of air and vapor back into the fuel. Mass Flow Return (MFR) technology continually polishes the fuel by maintaining a positive pressure, ensuring the cleanest fuel possible. The system also incorporates Bolt-On Bracket Mounts, enhancing the installation process with new brackets that utilize the Ford Super Duty factory bed bolt for superior support and strength.

For extreme cold weather operations, optional Electric Heater Ports are available, and the system provides the option for a Fuel Pressure Gauge Port. The Titanium Signature Series diesel fuel Systems from FASS Diesel Fuel Systems are distinguished in the diesel industry due to their focus on engineering excellence and unique design features, resulting in less than a 2% failure rating with their motor.
