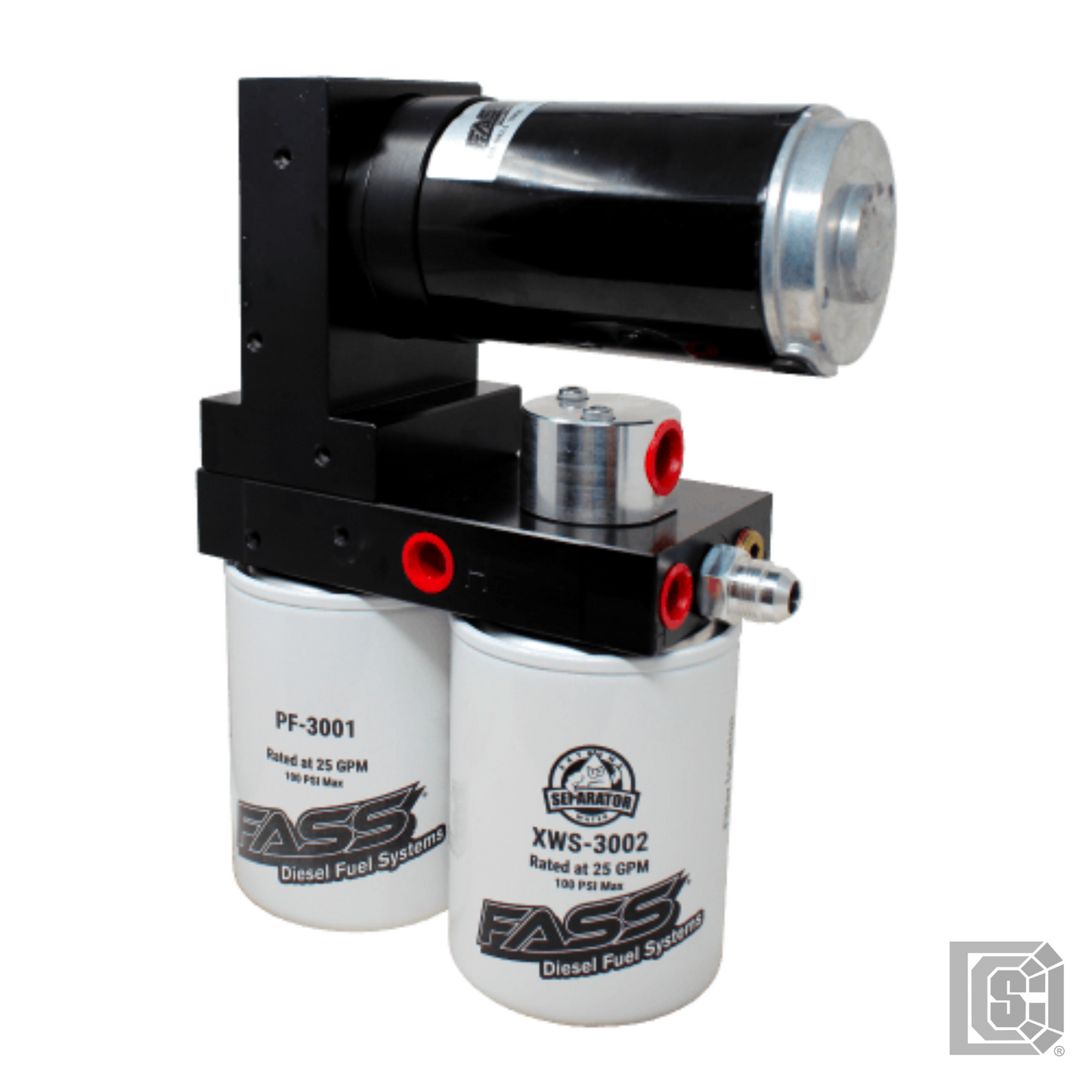

FASS - Titanium Signature Series Diesel Fuel System 250F 220GPH, (60-65 PSI) 2011-2016 Ford Powerstroke 6.7L, 900-1200hp - TSF17250F220G

FASS - Titanium Signature Series Diesel Fuel System 250F 220GPH, (60-65 PSI) 2011-2016 Ford Powerstroke 6.7L, 900-1200hp - TSF17250F220G

Regular price $739.05 USD
Regular price $818.89 USD Sale price $739.05 USD
Sale Sold out
Tax included. Shipping calculated at checkout.

Fitment: Ford F-250, Ford F-350, Powerstroke 2011-2016

The Titanium Signature Series diesel fuel system by FASS Diesel Fuel Systems stands as the pinnacle in performance, durability, and reliability within the aftermarket filtration systems for the diesel industry. Boasting a rating of 220 gallons per hour, high pressures of 65 PSI, and supported by our limited lifetime warranty, the Titanium Signature Series System is designed to provide substantial fuel support for aggressive tuning and high-performance fuel system upgrades, ranging up to 900-1200 HP for your Ford Powerstroke 6.7L diesel engine. Advanced filtration benefits safeguard your Powerstroke's injection systems, effectively extending the lifespan of both your injection system and injectors. These benefits include an enhanced filtration rating of 2 Microns, a built-in water separation filter, and FASS Diesel Fuel Systems' patented air/vapor removal process.

For drivers and high-performance applications seeking improved fuel economy or increased horsepower/torque, aftermarket systems are essential.

The kit includes a FASS BHF-1005 (Bulkhead and Suction Tube Kit), machined from 6061 T-6 Billet Aluminum. This bulkhead fitting mounts directly to the factory fuel tank module (sending unit), enabling the FASS system to draw and return fuel directly to the fuel tank module. This eliminates all 1/4 tank and 1/8 tank issues when installed correctly. The pickup tube, fabricated out of PTFE Teflon, can be easily cut to adapt to different fuel tank depths. Properly installed, you can safely operate down to approximately 0 miles until empty.

The Titanium Signature Series diesel fuel systems set the industry standard due to FASS Diesel Fuel Systems' commitment to perfecting their systems and engineering. With less than a 2% failure rating and unique design features, FASS Diesel Fuel Systems ensures unparalleled performance.


  • Whisper Technology for reduced sound levels
  • Bolt-on bracket installation
  • Preset 60-65 PSI fuel pressure
  • Complete replacement system
  • 220 gallons per hour flow rating
  • Removes water, air, and debris from diesel fuel
  • 2-micron filtration rating
  • Protects and extends the life of your injectors
  • Improved cold weather starts
  • Decreases carbon monoxide and carbon dioxide emissions
  • ½ inch fuel lines and ports
  • Fuel mileage improvement
  • Improved fuel volume delivery
  • Smoother engine idle
  • Optional electric heater ports
  • Optional fuel pressure gauge port
  • Limited lifetime warranty
  • 1,000,000-mile motor
  • 30,000-mile filter life expectancy
  • Quietest motor on the market
