FASS - Filter Pack - FP3000

Ideal for workshops or keeping your garage well-supplied, each FASS Fuel FP3000 includes two (2) (XWS3002) Extreme Water Separators and two (2) (PF3001) Particulate Filters. Engineered for convenience, these FP3000 sets simplify the maintenance of multiple FASS Fuel Systems.

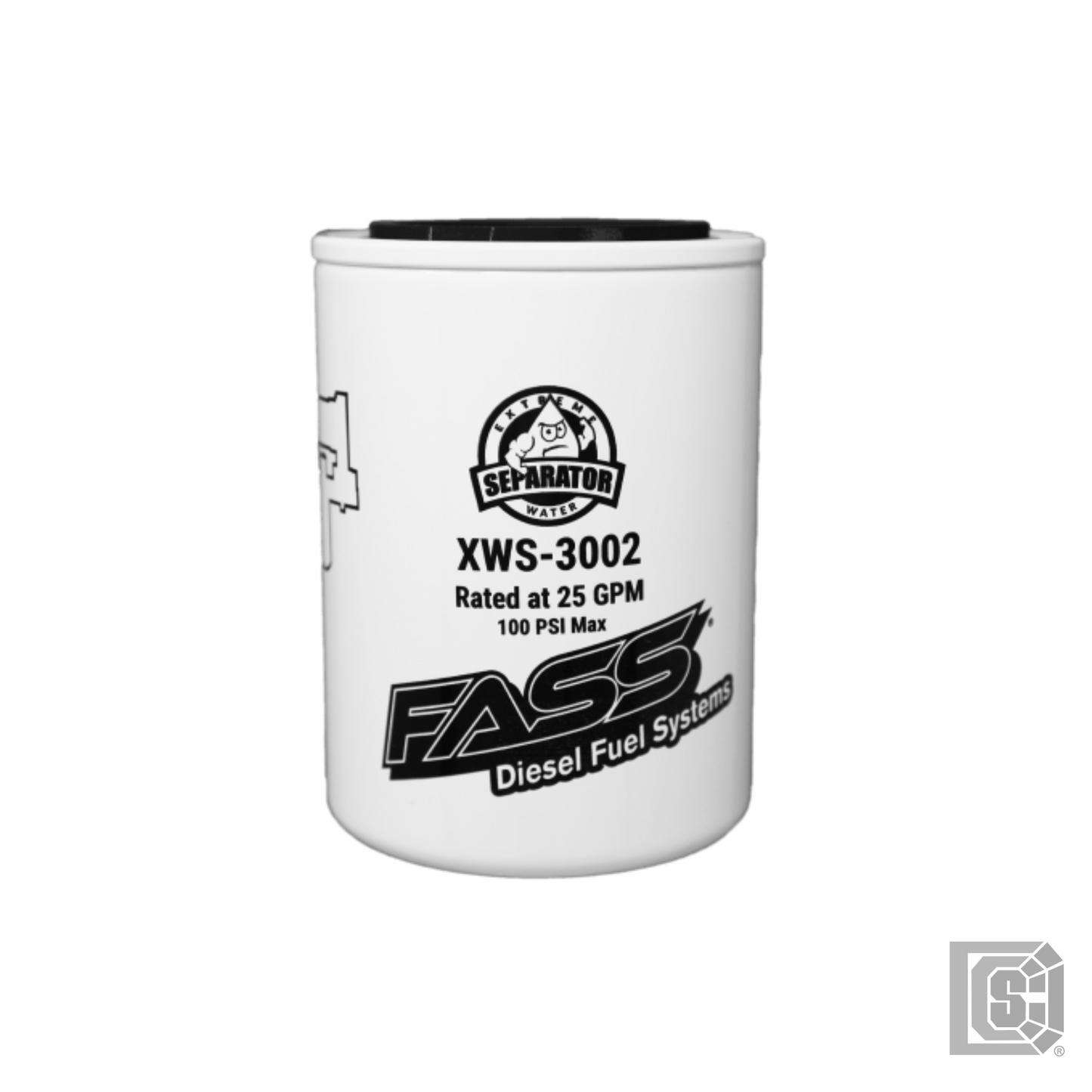

The XWS3002, an advanced and more efficient extreme water separator, boasts a 2-micron absolute rating. With over 99% water-trapping capability, the new design eliminates the need for a drain on our water separator.

It is crucial to use the XWS3002 in conjunction with the PF3001, as these new filters are not compatible with the FF-3003/FF-3010 or FS-1001/FS-1020.

When replacing discontinued filters with the new XWS3002 and PF3001, position the XWS3002 on the pressure side of the system, and the PF3001 on the suction side.*

The PF3001, a new particulate filter, is rated at 144 microns. Placing this 144-micron particulate filter on the suction side significantly reduces cavitation, enhances flow properties, reduces the sound output of the FASS System, and effectively removes larger fuel particulates.

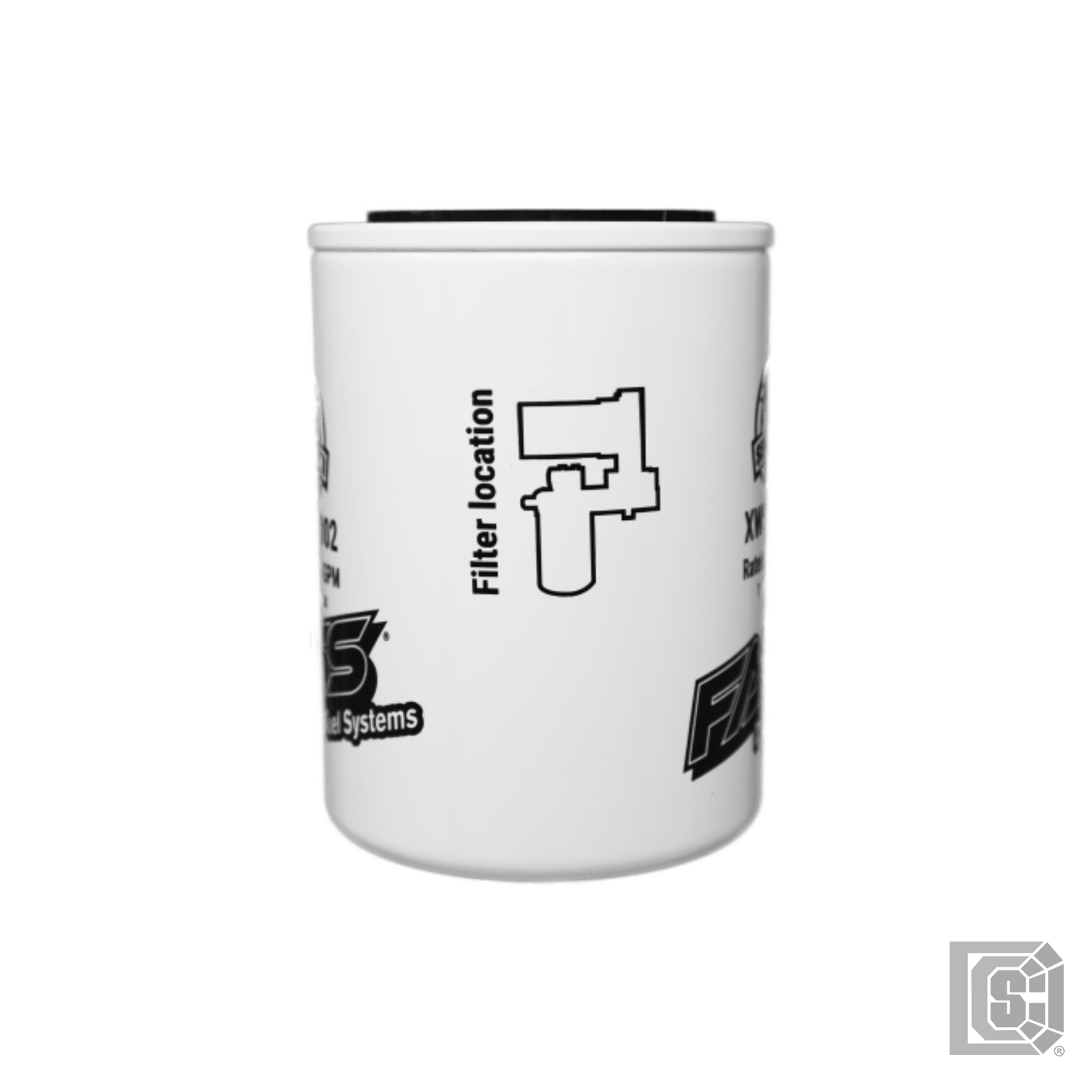

*Refer to the location diagram on the new filters for proper placement.

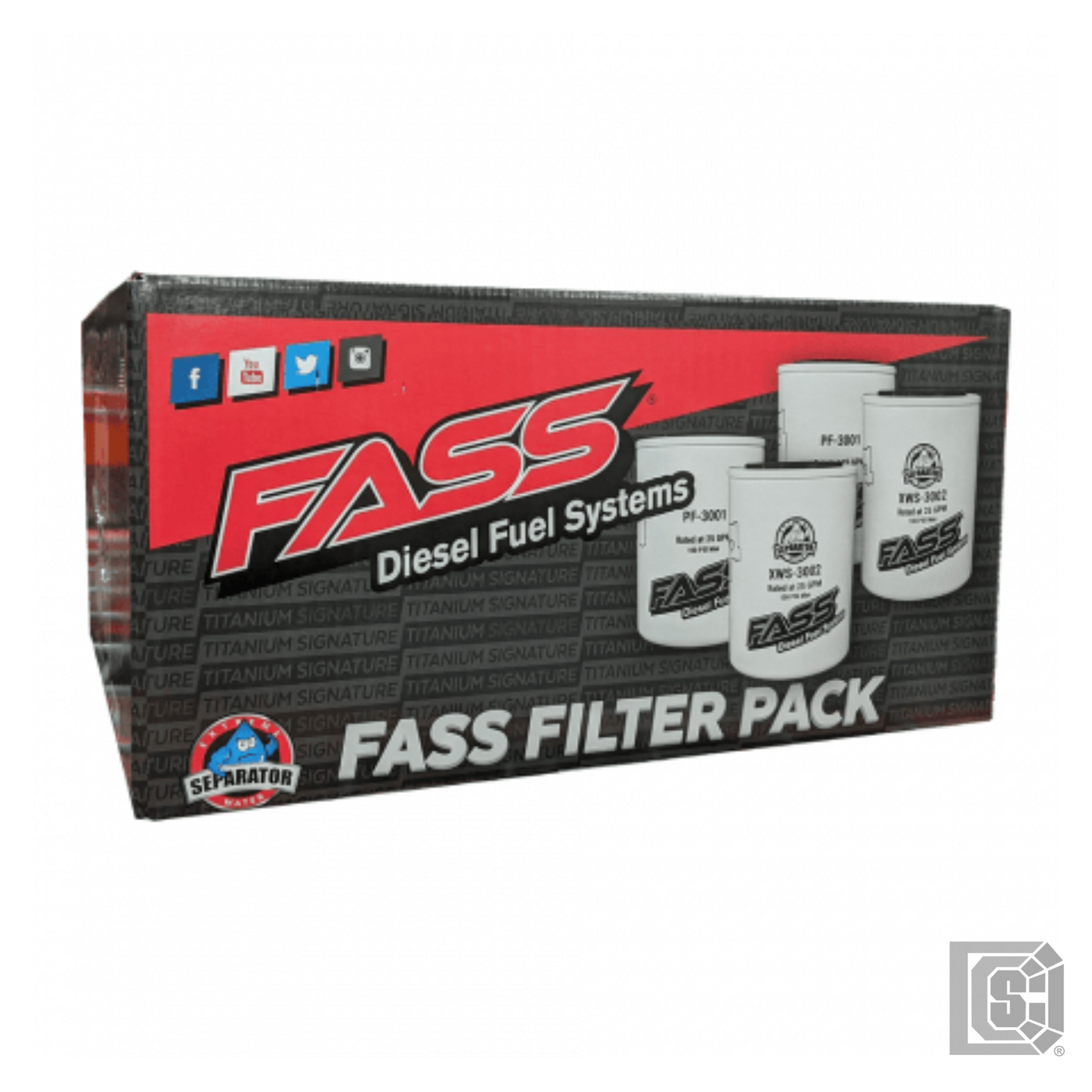

Each FASS Fuel Filter Pack FP3000 includes:

• Two (2) (XWS3002) Extreme Water Separators
• Two (2) (PF3001) Particulate Filters

Designed for use with FASS Titanium Series or FASS Titanium Signature Series Systems.
